BGA 312 is a semiconductor product that is a silicon bipolar MMIC amplifier. It features a cascading 50Ω gain block, typical gain of 11 dB at 1.0 GHz, typical P-1dB of 9 dBm at 1.0 GHz, and a 3 dB bandwidth from DC to 2.0 GHz.

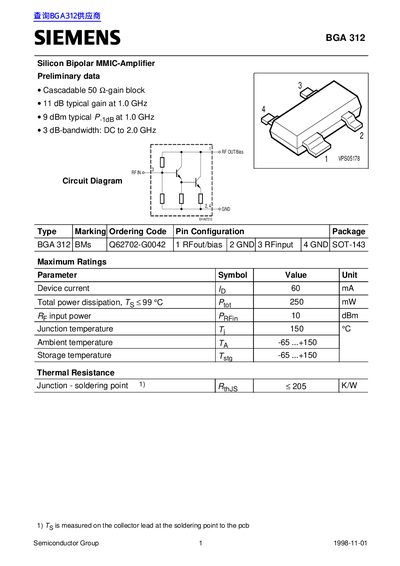

This document provides preliminary technical data for the Siemens BGA 312, a cascable 50 Ohm gain block silicon bipolar MMIC amplifier. Key specifications include a typical insertion power gain of 11 dB at 1.0 GHz and a 3 dB bandwidth extending from DC to 2.0 GHz.
| Device current (Ip) | 60 mA |
|---|---|
| Total power dissipation (Prot) | 250 mW |
| Ag input power (Paein) | 10 dBm |
| Junction temperature (Tj) | 150 °C |
| Ambient temperature range | -65 ...+150 °C |
| Insertion power gain at 1 GHz | 11 dB typical |
| 3 dB bandwidth | DC to 2.0 GHz |
The typical gain is 11 dB.
The maximum device current (Ip) is 60 mA.
