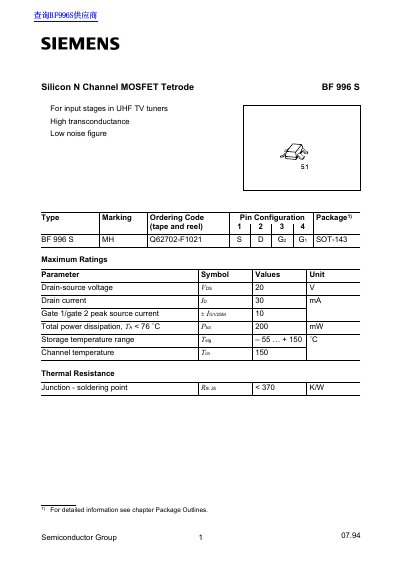

Semiconductor Group BF 996 S Silicon N Channel MOSFET Tetrode Datasheet

This is a BF996S model N-channel MOSFET with high transconductance and low noise characteristics, suitable for UHF TV input stages

Brand: Siemens
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 140 KB
Published: 04 July, 2012
Updated: 30 September, 2023
MD5 checksum: BBAA3D2E378D2EF370D4C8324C83C239
PDF: Semiconductor Group BF 996 S Silicon N Channel MOSFET Tetrode Datasheet PDF

About this manual

This document is a technical datasheet for the Semiconductor Group BF 996 S, a Silicon N Channel MOSFET Tetrode. The device is specifically intended for use as an input stage in UHF television tuners due to its high transconductance and low noise figure characteristics.

What's inside

Maximum Ratings
Pin Configuration
Ordering Code
DC Electrical Characteristics
AC Electrical Characteristics
Power Gain Curves
Noise Figure Curves
Test Circuits

Specifications

Drain-source voltage (VDS)	20 V
Total power dissipation (Ptot)	200 mW
Storage temperature range (Tstg)	-55 … +150 ˚C
Channel temperature (Tch)	150 mA
Drain current (ID)	30 mA
Forward transconductance (gfs)	15 – 18 mS
Gate 2 input capacitance (Cg2ss)	1.1 pF
Output capacitance (Cdss)	0.8 pF
Noise figure (F)	1 dB

Frequently asked questions

What is the primary application for the BF 996 S?

The device is designed specifically for input stages in UHF TV tuners.

What are the key performance features of this component?

It offers high transconductance and a low noise figure.
