The SN 7002 is an N-channel enhancement mode logic level small signal transistor with a maximum drain source voltage of 60V, a maximum DC drain current of 0.19A, and a maximum RDS(on) of 5Ω.

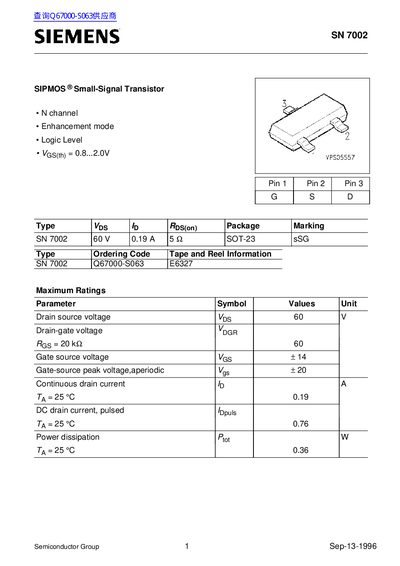

This document is a datasheet for the Siemens SN 7002, an N-channel enhancement mode logic level SIPMOS small-signal transistor. It specifies that the device operates with a gate threshold voltage of 0.8 to 1.4V and is housed in an SOT-23 package.
The datasheet provides detailed maximum ratings, electrical characteristics, and dynamic parameters such as transconductance and capacitance. It also includes graphical representations of output characteristics, transfer characteristics, and package dimensions for the SOT-23 form factor.
| Drain source voltage | 60 V |
|---|---|
| Continuous drain current | 0.19 A |
| Power dissipation | 0.36 W |
| Operating temperature | -55 ...+150 °C |
The maximum continuous drain current is 0.19 A at 25°C.
The maximum continuous drain current is 0.19 A when the junction temperature is 25°C.
The gate threshold voltage ranges from a minimum of 0.8 V to a maximum of 1.4 V.
The maximum power dissipation is 0.36 W when the junction temperature is 25°C.
