This data sheet provides the specifications of 3mm(T1)LEDs, including product model, color, emission color, package color, luminous intensity and other information.

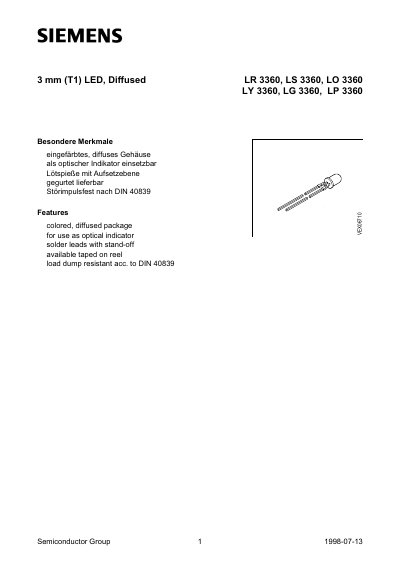

This document is a technical datasheet for the Siemens Semiconductor Group's 3mm diffused LED series, specifically models LR 3360, LS 3360, LO 3360, LY 3360, LG 3360, and LP 3360. The datasheet details the features of these components, which include a colored diffused package, solder leads with a stand-off, and load dump resistance according to DIN 40839.
| Operating temperature range | -55...+100 °C |
|---|---|
| Storage temperature range | -55...+100 °C |
| Forward current | 30...45 mA |
| Surge current | 0.5 A |
| Reverse voltage | 5 V |
| Power dissipation | 100...140 mW |
| Thermal resistance (Junction / air) | 400 K/W |
| Forward voltage (typical) | 1.6...2.6 V |
| Reverse current (max) | 10 µA |
| Capacitance | 8...25 pF |
The LEDs are load dump resistant according to DIN 40839.
Yes, the components are available taped on reel.
The typical forward current is between 30 mA and 45 mA.
