The 10ETF.. fast soft recovery QUIETIR rectifier series has been optimized for combined short reverse recovery time and low forward voltage drop.

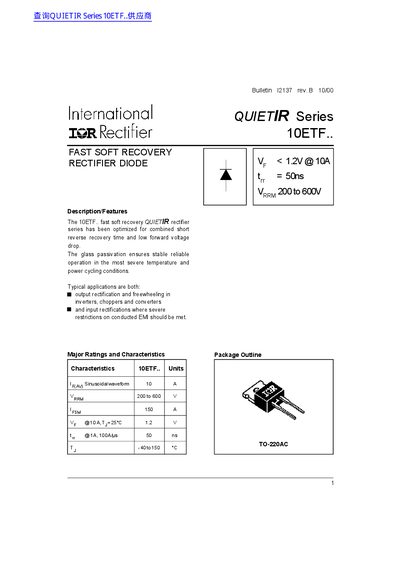

This document provides technical data for the QUIETIR Series 10ETF.. fast soft recovery rectifier diode. The device is optimized for combined short reverse recovery time and low forward voltage drop, featuring glass passivation for stable operation in severe temperature and power cycling conditions. Typical applications include output and freewheeling rectification in inverters, choppers, and converters, as well as input rectification where low conducted EMI is required.
The datasheet details major ratings, including a sinusoidal waveform average forward current of 10A and a peak reverse voltage range from 200V to 600V. It also lists absolute maximum ratings, electrical specifications such as forward voltage drop and reverse recovery time, and thermal-mechanical specifications including junction temperature ranges and thermal resistance values.
| Average Forward Current | 10 A |
|---|---|
| Peak Reverse Voltage Range | 200 to 600 V |
| Forward Voltage Drop | 1.2 V |
| Junction Temperature Range | -40 to 150 °C |
| Package Style | TO-220AC |
Typical applications include output rectification and freewheeling in inverters, choppers, and converters, as well as input rectifications where severe restrictions on conducted EMI should be met.
The maximum peak reverse voltage for the 10ETF.. series ranges from 300V to 700V depending on the specific part number.
