The document introduces the supplier information of IR207DM, mainly introduces the type, brand and supplier of IR207DM

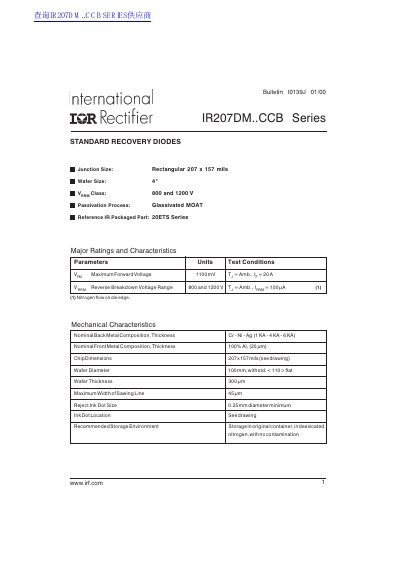

This document provides technical specifications for the International Rectifier IR207DM..CCB Series of standard recovery diodes. Key electrical parameters include a maximum forward voltage of 1100mV and reverse breakdown voltages of 800V and 1200V. The diodes feature a rectangular junction size of 207 x 157 mils and utilize a glassivated MOAT passivation process.
| Maximum Forward Voltage | 1100mV |
|---|---|
| Reverse Breakdown Voltage Range | 800 and 1200V |
| Junction Size | Rectangular 207 x 157 mils |
| Wafer Diameter | 100mm |
| Wafer Thickness | 300 um |
The junction size is rectangular with dimensions of 207 x 157 mils.
The available voltage classes are 800 V and 1200 V.
The nominal front metal thickness is 20 micrometers.
