This document describes the features and characteristics of the 650A PHASE CONTROL THYRISTORS Hockey Puk Version ST330C..L SERIES 1, as well as its typical applications and major ratings and characteristics.

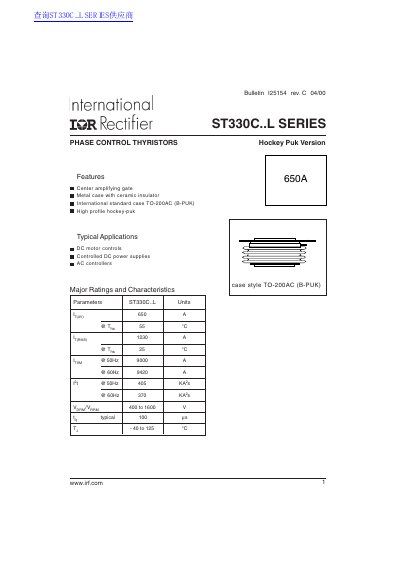

This document is a datasheet for the International Rectifier ST330C..L Series of 650A phase control thyristors. The devices feature a metal case with ceramic insulator in the TO-200AC (B-PUK) 'Hockey Puk' style and are designed for applications including DC motor controls, controlled DC power supplies, and AC controllers. Key ratings include an average on-state current of 650A at 55°C and a voltage range from 400V to 1600V.
| Average on-state current | 650 A |
|---|---|
| RMS on-state current | 1230 A |
| Peak non-repetitive surge current | 9000 A |
| Voltage range | 400 to 1600 V |
| Operating temperature range | -40 to 125 °C |
| Case style | TO-200AC (B-PUK) |
Typical applications include DC motor controls, controlled DC power supplies, and AC controllers.
The maximum average on-state current is 650 A at a heatsink temperature of 55 °C.
The devices use a TO-200AC (B-PUK) case style, also referred to as the Hockey Puk version.
