lnternational IOR Rectifier IR207LM..CS02CB SERIES handbook

IR207LM..CS02CB is a fast recovery diode produced by International Rectifier. The main features are a reverse breakdown voltage range of 200 to 600 volts and a maximum forward voltage of 1300 millivolts. It can be used in power supplies and switch circuits.

Brand: International Rectifier
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 47 KB
Published: 10 July, 2012
Updated: 30 September, 2023
MD5 checksum: 8F25FE57638880D5E64C14477E89AD1B
PDF: lnternational IOR Rectifier IR207LM..CS02CB SERIES handbook PDF

About this manual

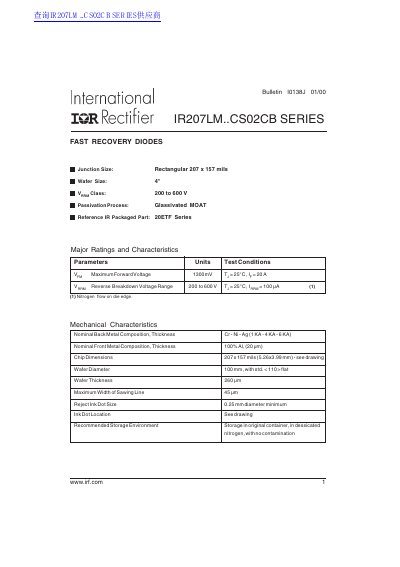

This document is a technical bulletin (Bulletin 10138J) from International Rectifier describing the IR207LM..CS02CB Series of Fast Recovery Diodes. The product features a junction size of 207 x 157 mils and is available in voltage classes ranging from 200 to 600 V.

What's inside

Major Ratings
Mechanical Characteristics
Chip Dimensions
Ordering Information
Wafer Layout

Specifications

Maximum Forward Voltage	1300mV
Reverse Breakdown Voltage Range	200 to 600 V
Junction Size	207 x 157 mils
Wafer Diameter	100mm
