This document describes the features and characteristics of the ST330C..C series phase control thyristor products, including metal case, ceramic insulator, international standard packaging, etc. It is suitable for applications such as DC motor controls, controlled DC power supplies, AC controllers, etc.

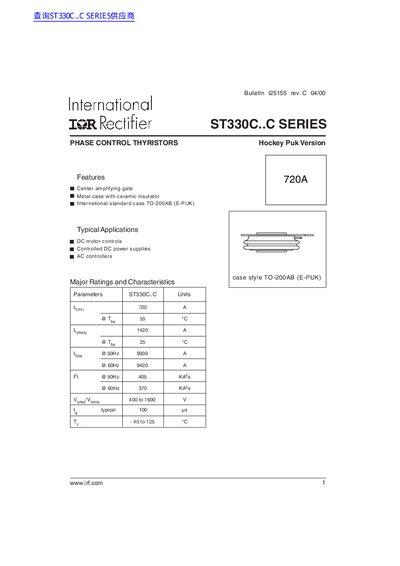

This document provides comprehensive technical data for the International Rectifier ST330C..C series phase control thyristors. It covers major ratings such as average on-state current of 720A and voltage ratings ranging from 400V to 1600V. The thyristors feature a metal case with ceramic insulator in a TO-200AB (E-PUK) package and include a center amplifying gate.
| Average on-state current | 720 A |
|---|---|
| Operating temperature range | -40 to 125 °C |
| Case style | TO-200AB (E-PUK) |
| Voltage rating range | 400 to 1600 V |
The maximum operating temperature range is -40 to 125 °C.
The maximum average on-state current is 720 A when the heatsink temperature is 55 °C.
The device can operate between -40 °C and 125 °C.
The maximum non-repetitive surge current is 9420 A at 8.3ms.
