This document provides information on the mechanical characteristics and major performance parameters of the IR207DM16CCB standard recovery diode. The diode has a maximum forward voltage of 1.15V and a reverse breakdown voltage of 1600V. The document also provides information on the dimensions, packaging, and storage requirements of the product.

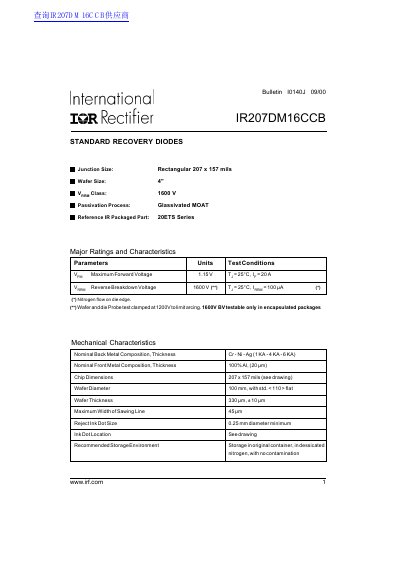

This document is a technical bulletin (Bulletin 10140J) from International Rectifier describing the IR207DM16CCB Standard Recovery Diode. It provides major ratings, characteristics, and ordering information for this specific device.
The datasheet details key electrical parameters such as a maximum forward voltage of 1.15V at 25°C and a reverse breakdown voltage of 1600V. It also includes mechanical specifications like chip dimensions (207 x 157 mils), wafer size, and metallization composition.
| Maximum Forward Voltage | 1.15V |
|---|---|
| Reverse Breakdown Voltage | 1600V |
| Chip Dimensions | 207 x 157 mils |
| Wafer Diameter | 100mm |
| Metallization (Anode) | Aluminium |
The voltage code indicates 1600V, where Code x 100 equals Vo.
Yes, the device type D is defined as a Wire Bondable Standard Recovery Diode.
