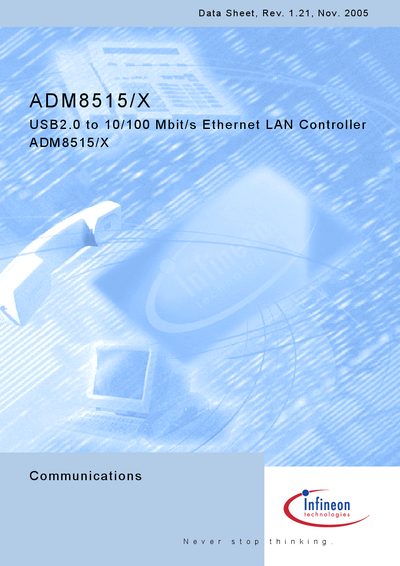

lnfineon ADM8515/X USB2.0 to 10/100 Mbit/s Ethernet LAN Controller ADM8515/X

About this manual

This document is a technical datasheet for the ADM8515/X, a communications chip designed by Infineon Technologies. It serves as a bridge between USB 2.0 hosts and 10/100 Mbit/s Ethernet networks.

The device integrates a USB 2.0 transceiver (UTMI interface), an Ethernet MAC controller, and a Physical Layer (PHY) engine into a single chip. Key features include support for full-duplex operation, auto-negotiation, adaptive equalization, and wake-on-LAN functionality via USB.

What's inside

• Product Overview
• Features
• Block Diagram
• Pin Description
• Host Interface
• USB Interface
• Ethernet PHY
• Registers Description
• Electrical Characteristics
• Package Information

Specifications

Frequently asked questions

What is the maximum data rate supported by this controller?

The ADM8515/X supports a USB 2.0 interface and provides Ethernet speeds of up to 10/100 Mbit/s.

What is the package type for this component?

This controller is available in a Plastic Low Profile Quad Flat Package with 100 pins.

Does this device support remote wakeup functionality?

Yes, the ADM8515/X includes specific commands to clear and set features for Remote Wakeup on the USB interface.
