BAT14-03W is a low noise and low barrier type silicon Schottky diode for DBS mixer application, with a maximum reverse voltage of 4V and a maximum operating temperature of 150°C.

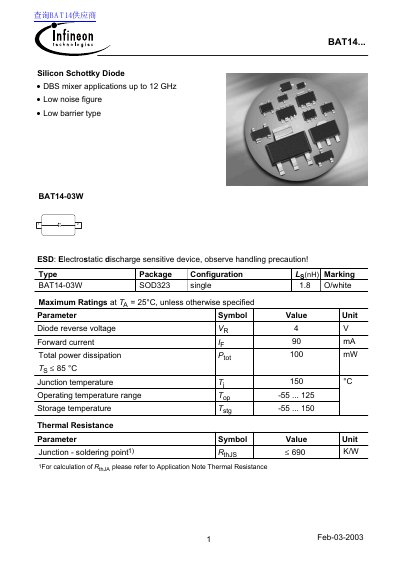

The document is a technical data sheet for the BAT14-03W Silicon Schottky Diode. It specifies that the device is designed for DBS (Direct Broadcast Satellite) mixer applications up to 12 GHz and features low noise figure and low barrier characteristics.
Key specifications include a maximum diode reverse voltage of 4V, a forward current rating of 90mA, and a total power dissipation of 100mW. The device is housed in an SOD323 package with a marking code of BAT14-03W.
| Product Type | Silicon Schottky Diode |
|---|---|
| Model Number | BAT14-03W |
| Application | DBS mixer applications up to 12 GHz |
| Package Configuration | SOD323 single |
| Marking Code | BAT14-03W |
| Diode Reverse Voltage (VR) | 4 V |
| Forward Current (IF) | 90 mA |
| Total Power Dissipation (Ptot) | 100 mW |
| Junction Temperature (Tj) | 150 °C |
| Operating Temperature Range (Top) | -55 ... 125 °C |
| Breakdown Voltage (V(BR)) | 4 V |
| Forward Voltage (VF) | 0.52 ... 0.66 V |
| Diode Capacitance (CT) | 0.22 ... 0.35 pF |
| Differential Forward Resistance (RF) | 5.5 Ω |
The device can operate between -55°C and 125°C.
Yes, it is an ESD sensitive device and requires proper handling precautions.
