TLE 4296-2 G is a monolithic integrated low-drop voltage regulator with output voltage of 3.3V or 5.0V, output current of 30mA, output voltage accuracy of ≤±4%, operating temperature range of -40°C to 150°C, overload, short circuit and reverse polarity protection functions, P-SCT595-5 package.

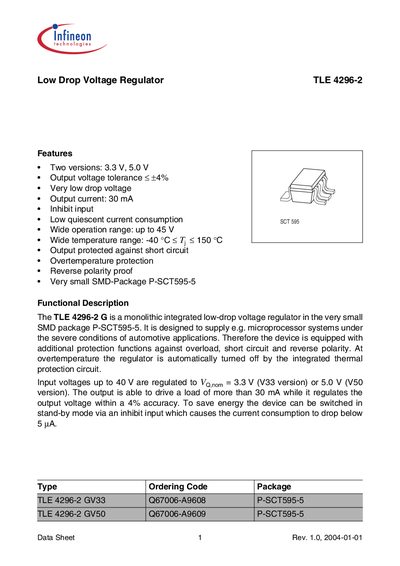

The Infineon Technologies TLE 4296-2 is a monolithic integrated low-drop voltage regulator designed specifically for microprocessor systems under severe conditions, such as those found in automotive applications. The device offers two output voltage versions: 3.3 V and 5.0 V.
| Output voltage tolerance | < +4% |
|---|---|
| Output current | 30 mA |
| Input voltage range (GV33) | 4.0 V to 45 V |
| Input voltage range (GV50) | 5.5 V to 45 V |
| Operating temperature range | -40 °C to 150°C |
| Package type | P-SCT595-5 |
The device is available in two versions: one for 3.3 V output and one for 5.0 V output.
The device includes protection against short circuit, overtemperature, and reverse polarity.
