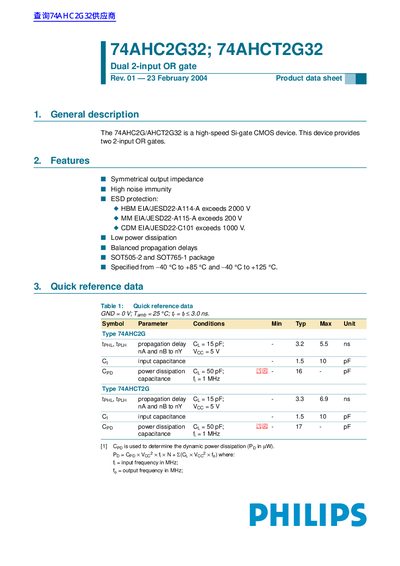

The 74AHC2G/AHCT2G32 is a high-speed Si-gate CMOS device that provides two 2-input OR gates
The document provides a general description of the 74AHC2G32 and 74AHCT2G32 devices, which are high-speed Si-gate CMOS components providing two 2-input OR gates. Key features include symmetrical output impedances, high noise immunity, and ESD protection exceeding 2000 V (HBM). The devices are specified for operation from -40 °C to +85 °C and -40 °C to +125 °C.
| Device Type | Dual 2-input OR gate |
|---|---|
| Technology | high-speed Si-gate CMOS |
| ESD Protection (HBM) | exceeds 2000 V |
| ESD Protection (MM) | exceeds 200 V |
| Package Types | SOT505-2 and SOT765-1 |
| Operating Temperature Range | -40 °C to +125 °C |
| Supply Voltage (74AHC2G) | 2.0 V to 5.5 V |
| Supply Voltage (74AHCT2G) | 4.5 V to 5.5 V |
| Input Capacitance | 10 pF |
| Power Dissipation | 250 mW |
These devices provide two 2-input OR gates.
The devices are available in SOT505-2 and SOT765-1 packages.
The maximum supply voltage for the 74AHC2G32 is 5.5 V.
The minimum supply voltage for the 74AHCT2G32 is 4.5 V.
