This datasheet provides detailed information on the Philips Semiconductors BZV87 series of low-voltage stabilization diodes. The series features low-voltage stabilization, a forward voltage range of 1.4 to 3.2 V, a maximum total power dissipation of 330 mW, and a differential resistance range of 20 to 35 Ω. These products are suitable for applications such as power clipping, level shifting, low-voltage regulation, and temperature stabilization.

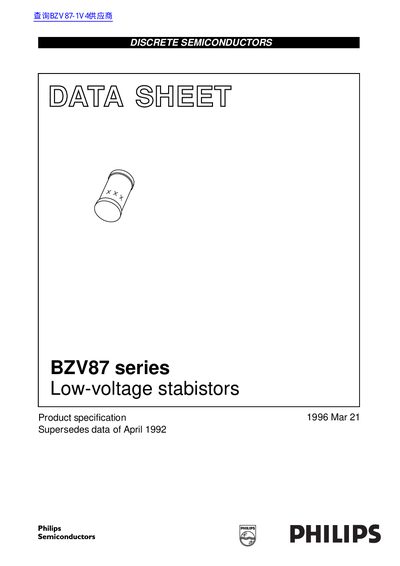

This document is a product specification datasheet for the Philips BZV87 series of low-voltage stabilizers. It details the features and applications of these discrete semiconductors, which are designed for power clipping, level shifting, and low-voltage regulation. The series includes four specific types: BZV87-1V4, BZV87-2V0, BZV87-2V6, and BZV87-3V2.
| Total power dissipation | max. 330 mW |
|---|---|
| Differential resistance range | max. 20 to 35 Ω |
| Continuous reverse voltage | 10 V |
| Forward voltage range | 1.4 to 3.2V |
| Package type | SOD80 |
| Storage temperature | -65 to +150 °C |
The series consists of four types: BZV87-1V4 to BZV87-3V2.
The maximum junction temperature is 150 °C.
The cathode is indicated by a yellow marking band.
