The 74HC/HCT04 are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A. The 74HC/HCT04 provide six inverting buffers.

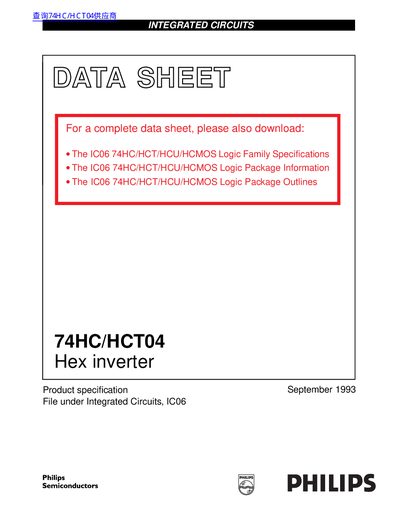

The Philips 74HC/HCT04 is a high-speed Si-gate CMOS integrated circuit designed as a hex inverter. These devices are pin compatible with low power Schottky TTL (LSTTL) and are specified in compliance with JEDEC standard no. 7A. The component provides six inverting buffers within a single package.
The datasheet details the electrical characteristics for both 74HC and 74HCT variants, including propagation delay, input capacitance, and power dissipation capacitance. It also includes pin descriptions, logic symbols, functional diagrams, and a function table defining the relationship between inputs and outputs.
| Device Type | Hex inverter |
|---|---|
| Technology | high-speed Si-gate CMOS |
| TTL Compatibility | low power Schottky TTL (LSTTL) |
| Standard | JEDEC standard no. 7A |
| Output Capability | standard |
| IC Category | SSI |
| Input Capacitance | 3.5 pF |
The 74HC/HCT04 provide six inverting buffers.
Yes, it is pin compatible with low power Schottky TTL (LSTTL).
The output capability is standard.
