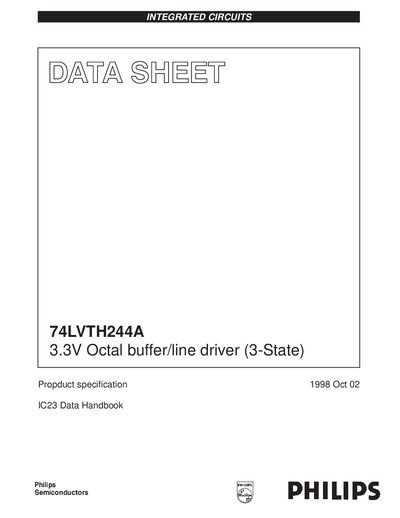

The 74LVTH244A is a 3.3V octal buffer/line driver with 3-State outputs. It has TTL input and output switching levels, and input and output interface capability to systems at 5V supply.
The Philips 74LVTH244A is an integrated circuit featuring eight bus interface buffers with three-state outputs. It is designed as a high-performance BiCMOS product optimized for Voc (supply voltage) operation at 3.3V, making it ideal for driving bus lines in digital systems.
| Supply Voltage (Voc) | 2.7 to 3.6 V |
|---|---|
| Operating Temperature Range | -40°C to +85°C |
| Output Capability (High) | +64mA |
| Output Capability (Low) | -32mA |
The absolute maximum rating for the DC supply voltage (Vcc) is +4.6 V.
The device can sink up to 32 mA when the output is in a Low state.
