This document is a product specification for the BGY583 CATV amplifier module. It describes the features and characteristics of the module, including excellent linearity, extremely low noise, silicon nitride passivation, rugged construction, and optimal reliability ensured by TiPtAu metallized crystals.

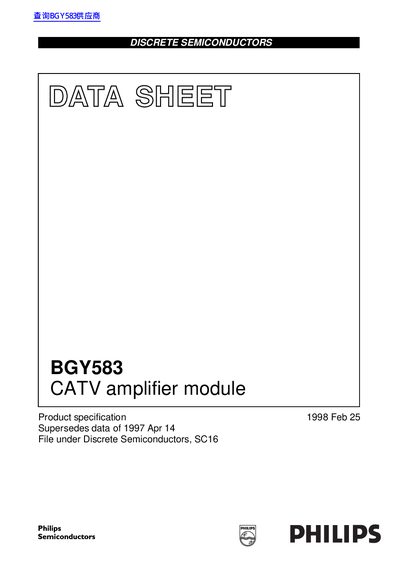

The document is a product specification datasheet for the Philips BGY583, a hybrid amplifier module designed for CATV systems. It operates over a frequency range of 40 to 550 MHz with a DC voltage supply of 24 V. Key features include excellent linearity, extremely low noise, and a rugged construction utilizing silicon nitride passivation and TiPtAu metallized crystals.
| Frequency Range | 40 to 550 MHz |
|---|---|
| Supply Voltage | 24 V (DC) |
| Power Gain (Typical) | 13.5 - 14.5 dB at 50 MHz |
| Input Voltage | -65 dBmV |
| Storage Temperature | -40 to +100 °C |
| Operating Temperature | -20 to +100 °C |
| Bandwidth | 40 to 550 MHz |
| Noise Figure | 8.5 dB |
The module operates over a frequency range of 40 to 550 MHz.
The module requires a voltage supply of 24 V (DC).
The typical power gain is between 13.5 and 14.5 dB at 50 MHz.
