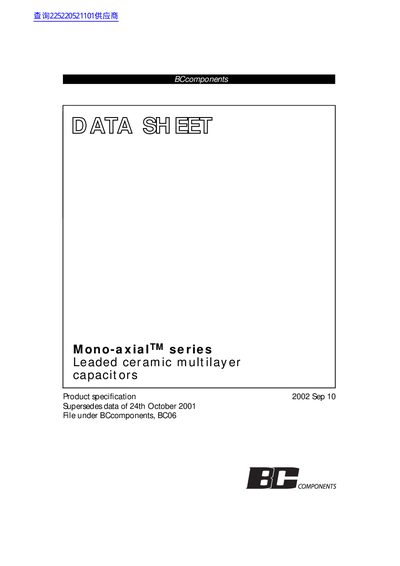

This document is about the product specifications of BCcomponents Mono-axialTM series leaded ceramic multilayer capacitors. These capacitors have high capacitance per unit volume and low cost. They are designed for commercial and industrial applications with four dielectrics options. Suitable for automatic insertion equipment.
This document provides a product specification for the BCcomponents Mono-axial series of leaded ceramic multilayer capacitors. The capacitors are designed for commercial and industrial applications, featuring high capacitance per unit volume and suitability for automatic insertion equipment. They are available in four dielectric types: NPO (ultra-stable), X7R (stable), and Z5U, Y5V (general purpose).
| Dielectric Types | NPO, X7R, Z5U, Y5V |
|---|---|
| Tolerance | +/-20% to +80%/-20% |
| Encapsulation | UL94V-0 flame resistant |
These conformally coated axial leaded capacitors are designed for commercial and industrial applications in timing, coupling/decoupling, signal comparison, and biasing.
The basic capacitor construction has a capacitance range from 10 to 5600 pF.
The mechanical data specifies a carrier tape that is 6.35 mm wide.
