QTLP670C-2 is a surface mount LED lamp with standard brightness, PLCC-2 package. It features wide viewing angle, water clear optics and moisture-proof packaging. It is ideal for backlighting and optical coupling into light pipes.

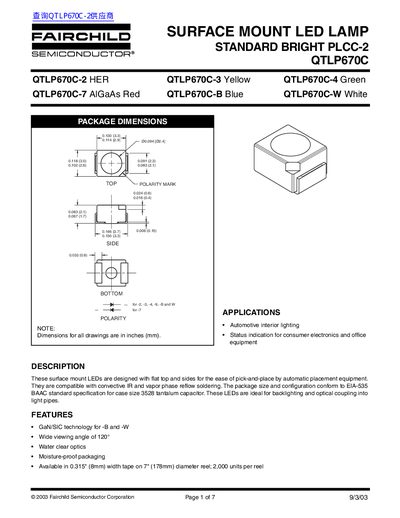

This document is a datasheet for the QTLP670C series of surface mount LED lamps manufactured by Fairchild Semiconductor. The LEDs feature a flat top and sides design compatible with automatic placement equipment and convective IR or vapor phase reflow soldering. They conform to the EIA-535 BAAC standard specification for case size 3528 tantalum capacitors.
| Operating Temperature | -40 to +85 °C |
|---|
The series is available in Red, Yellow, Green, Blue, and White.
Yes, the LEDs are compatible with convective IR and vapor phase reflow soldering.
