BFQ232, BFQ232A are NPN video transistors produced by Philips Semiconductors. They have high breakdown voltages, low output capacitance, good thermal stability and excellent reliability. They can be used as buffers/drivers in high-resolution colour graphics monitors.

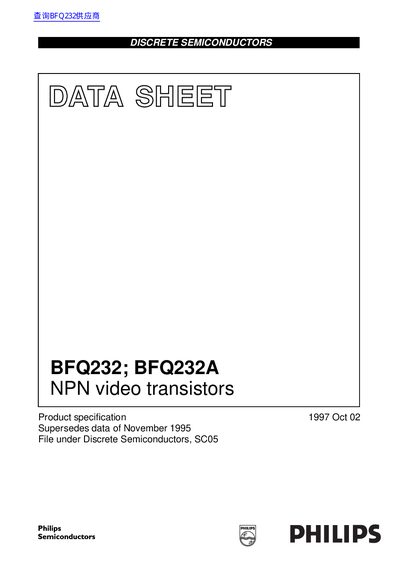

This document is a product specification sheet for the NPN video transistors BFQ232 and BFQ232A. Key features include high breakdown voltages, low output capacitance, good thermal stability, and gold metallization for reliability. These devices are designed for use as buffer/driver components in high-resolution colour graphics monitors.
| Collector-base voltage (VCBO) | 100 V (BFQ232), 115 V (BFQ232A) |
|---|---|
| Collector-emitter voltage (VCEO) | 65 V (BFQ232), 95 V (BFQ232A) |
| Collector current (DC) | 300 mA |
| Total power dissipation | 3 W |
| DC current gain (hFE) | 20 to 35 |
| Transition frequency (fT) | 1 to 1.4 GHz (BFQ232), 0.8 to 1.2 GHz (BFQ232A) |
| Package type | SOT32 (TO-126) |
They are used as buffer/driver components in high-resolution colour graphics monitors.
The maximum DC collector current is 300 mA.
The transition frequency for the BFQ232 is between 1 and 1.4 GHz.
