PHP3N20L is a N-channel enhancement mode logic level power field-effect transistor produced by Philips Semiconductors. The maximum drain-source voltage is 200 V, the rated drain current is 3.5 A, and the rated total power dissipation is 50 W. The typical switching time is 6 ns, and the package form is TO220AB.

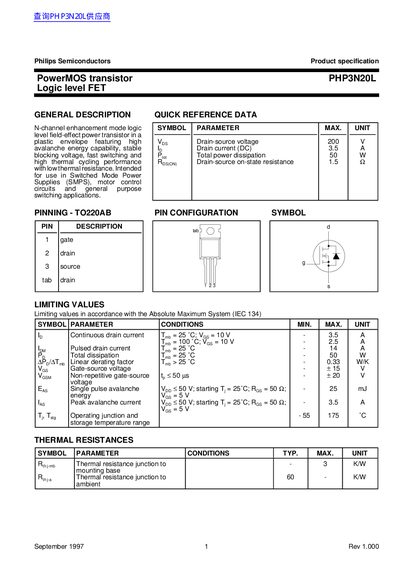

This document is a product specification datasheet for the Philips PHP3N20L, an N-channel enhancement mode logic level field-effect power transistor. It is designed for use in switched mode power supplies, motor control circuits, and general purpose switching applications. The device features high avalanche energy capability and stable blocking voltage.
| Drain-source voltage | 200 V |
|---|---|
| Drain current (DC) | 3.5 A |
| Total power dissipation | 50 W |
| Drain-source on-state resistance | 1.5 Ohm |
| Package type | TO220AB |
The maximum continuous drain current is 3.5 A at a temperature of 25°C.
The operating junction temperature range is from -55°C to +175°C.
