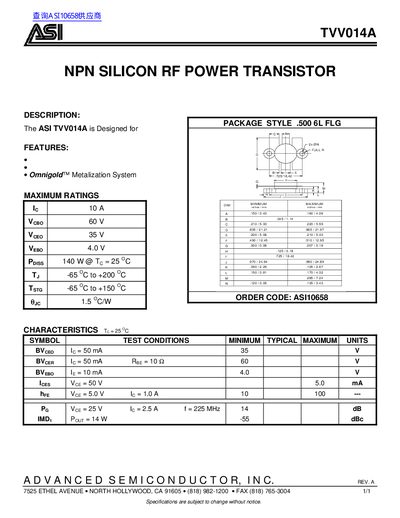

The document describes the ASI TVV014A, an NPN silicon RF power transistor designed with the Omnigold™ Metalization System. It is manufactured by Advanced Semiconductor, Inc.
Key electrical characteristics include a collector-emitter breakdown voltage (BVceo) of 35 V minimum and a typical power dissipation (Pd) of 14 W at 25 °C.
| Package Style | 500 GL FLG |
|---|---|
| Metalization System | Omnigold™ |
| Collector-Base Breakdown Voltage (VcBo) | 60 V |
| Emitter-Base Breakdown Voltage (VeBo) | 4.0 V |
| Power Dissipation (Pd) @ Te = 25 °C | 14 W |
| Operating Temperature Range | -65 °C to +200 °C |
| Storage Temperature Range (Tste) | -65 °C to +150 °C |
| Thermal Resistance (Bic) | 1.5°C/W |
The typical power output of 14 dB is measured at a frequency of 225 MHz.
