BCW60 is a surface mount NPN transistor from Schneider Electric. It has a power dissipation of 250 mW and a SOT-23 package.

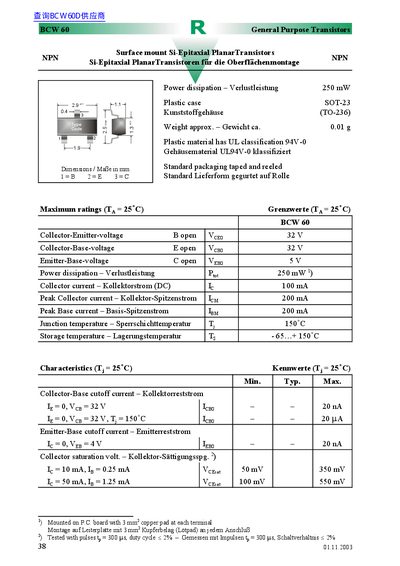

This document is a datasheet for the Sia BCW 60 series of NPN general purpose transistors. These are Si-Epitaxial Planar Transistors designed for surface mount applications in a plastic SOT-23 case. The document provides technical specifications in both English and German.
| Power dissipation | 250 mW |
|---|---|
| Collector-Emitter voltage | 32 V |
| Collector current (DC) | 100 mA |
| Junction temperature | 150°C |
The transistor uses a plastic SOT-23 case.
The standard packaging is taped and reeled.
