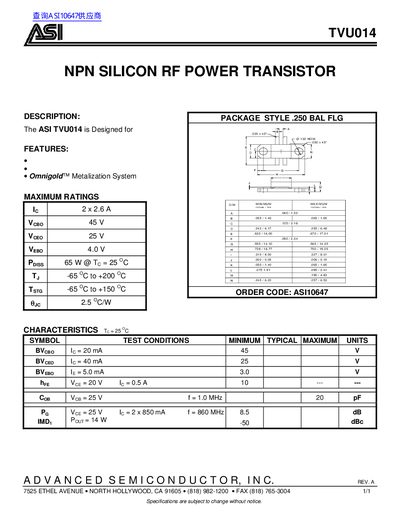

ASI TVU014 is a NPN silicon RF power transistor featuring Omnigold™ metallization system, maximum current of 2 x 2.6 A, maximum voltage of 45 V, maximum power of 65 W, maximum operating temperature range of -65 °C to +200 °C, maximum storage temperature range of -65 °C to +150 °C, and thermal resistance of 2.5 °C/W.
The ASI TVU014 is an NPN silicon RF power transistor designed for specific applications, utilizing the Omnigold™ Metalization System. It is available in a .250 BAL FLG package style.
Key electrical characteristics include a maximum collector-emitter voltage (Vceo) of 45V and a maximum collector-base voltage (Vcbo) of 25V. The device supports a maximum power dissipation of 65W at a case temperature of 25°C.
| Package Style | .250 BAL FLG |
|---|---|
| Maximum Power Dissipation | 65 W |
| Operating Temperature Range | -65 °C to +200 °C |
| Storage Temperature Range | -65 °C to +150 °C |
| Collector-Emitter Voltage (Vceo) | 45 V |
| Collector-Base Voltage (Vcbo) | 25 V |
| Emitter-Base Voltage (Vebo) | 3.0 V |
| Input Capacitance (Cies) | 20 pF |
| Power Gain (Pg) | 8.5 dB |
| Intermodulation Distortion (IMD) | -50 dBc |
The device has a maximum power dissipation of 65 W when the case temperature is 25°C.
The unit operates between -65 °C and +200 °C, with a storage range of -65 °C to +150 °C.
The typical value for Coss is 20 pF when Vce equals 25V.
