This document describes the features and characteristics of BCW 65 and BCW 66 general purpose NPN surface mount transistors. These transistors have a power dissipation of 250mW and a DC collector current of 800mA. They are suitable for surface mounting on printed circuit boards.

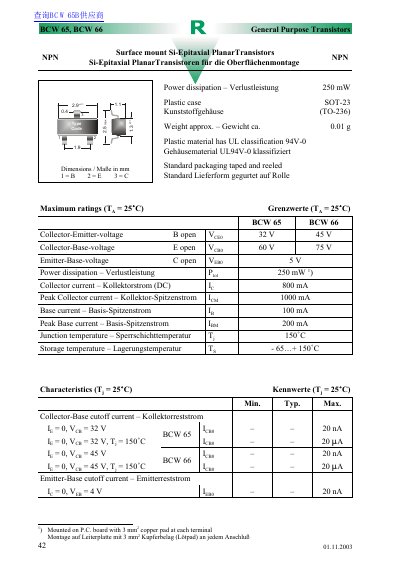

This document is a technical datasheet for the NPN BCW 65 and BCW 66 series of general-purpose surface-mount transistors. These devices are Si-Epitaxial Planar Transistors housed in a plastic SOT-23 case, designed for applications requiring low power dissipation.
| Power dissipation | 250 mW |
|---|---|
| Case type | Plastic case SOT-23 |
| Collector-Emitter voltage (BCW 65) | 32 V |
| Collector-Base voltage (BCW 66) | 45 V |
| Emitter-Base voltage | 5V |
| Collector current (DC) | 800 mA |
| Peak Collector current | 1000 mA |
| Junction temperature | 150°C |
The document recommends using BCW 67 and BCW 68 as complementary PNP transistors.
The marking code for BCW 65A is EA.
