The ASI UFT15-28S is a NPN silicon RF power transistor designed with Omnigold™ metallization system. It has a maximum current rating of 10A, a maximum voltage rating of 60V and 35V, and a maximum power dissipation of 140W.

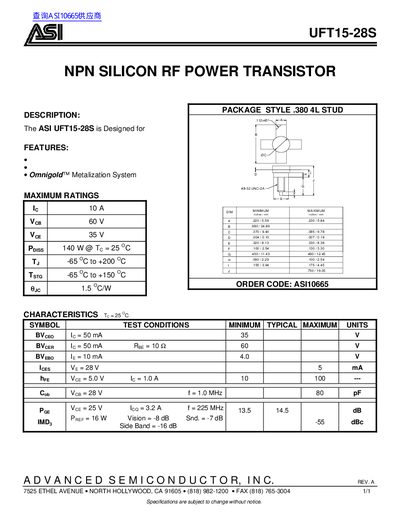

This document is a datasheet for the ASI UFT15-28S, an NPN silicon RF power transistor designed with the Omnigold™ Metalization System. It is packaged in a .380 4L stud style.
The datasheet provides maximum ratings including a collector current of 10A and a collector-emitter voltage of 60V. It also lists typical electrical characteristics such as power gain and noise figure at specific frequencies.
| Package Style | .380 4L STUD |
|---|---|
| Collector-Base Cutoff Current (Ices) | 5 mA |
| Power Gain (Pax) | 435 dB |
The device can dissipate up to 140 W when the case temperature is 25 °C.
