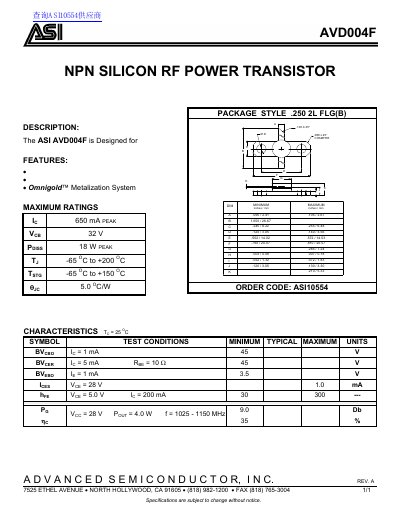

The AVD004F is an ASI designed NPN Silicon RF Power Transistor with Omnigold Metalization System. This chip has a maximum current of 650 mA, voltage of 32V and power of 18W.
The Advanced Semiconductor AVD004F is an NPN silicon RF power transistor designed for high-frequency power amplification applications. It utilizes the proprietary Omnigold™ Metalization System to ensure performance in demanding environments.
Key electrical characteristics include a maximum collector current of 650 mA and a peak dissipation of 18 W. The device operates within a temperature range of -65°C to +200°C and is housed in a .250 2L FLG(B) package.
| Collector Current (IC) | 650 mA |
|---|---|
| Peak Collector-Base Voltage (VCB) | 32 V |
| Peak Dissipation (PDISS) | 18 W |
| Operating Temperature Range | -65°C to +200°C |
| Package Style | .250 2L FLG(B) |
The maximum power dissipation (PDISS) is rated at 18 W.
This transistor operates in a frequency range of 1025 to 1150 MHz.
The maximum collector current (IC) limit is 650 mA.
