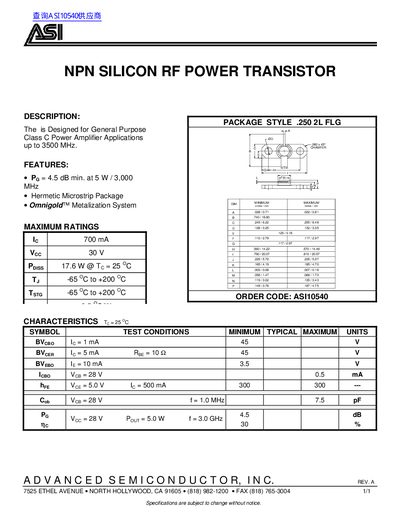

ASI10540 is a NPN silicon RF power transistor produced by Advanced Semiconductor, Inc. This transistor is designed for general purpose Class C power amplifier applications up to 3500 MHz. Its features include PG = 4.5 dB min. at 5 W / 3,000 MHz, Hermetic Microstrip Package and Omnigold™ Metalization System.
The ASI10540 is an NPN silicon RF power transistor designed for general-purpose Class C power amplifier applications operating up to 3500 MHz. It features a hermetic microstrip package with an Omnigold™ metalization system and a minimum power gain of 4.5 dB at 3000 MHz.
| Operating Frequency | up to 3500 MHz |
|---|---|
| Application | Class C Power Amplifier |
| Collector Current | 700 mA |
| Collector-Emitter Voltage | 30 V |
| Operating Temperature Range | -65 °C to +200 °C |
| Package Style | 0.250 2L FLG |
The transistor is designed for applications up to 3500 MHz.
The maximum collector current (Ic) is 700 mA.
