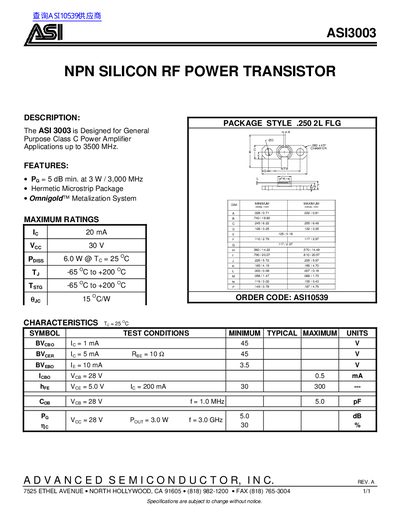

The ASI 3003 is a NPN silicon RF power transistor designed for general purpose Class C power amplifier applications up to 3500 MHz.
The ASI ASI3003 is an NPN silicon RF power transistor designed for general purpose Class C power amplifier applications up to 3500 MHz. It features a hermetic microstrip package with an Omnigold metalization system and is rated for a maximum power dissipation of 6.0 W at 25 °C.
| Frequency Range | up to 3500 MHz |
|---|---|
| Package Style | .2502L FLG |
| Maximum Collector Current | 20 mA |
| Maximum Collector-Emitter Voltage | 30 V |
| Maximum Power Dissipation | 6.0 W |
| Operating Temperature Range | 65 °C to +200 °C |
| Storage Temperature Range | -65 °C to +200 °C |
| Thermal Resistance | 15 °C/W |
It is designed for general purpose Class C Power Amplifier applications.
The device is rated for applications up to 3500 MHz.
The minimum power gain is 5 dB.
