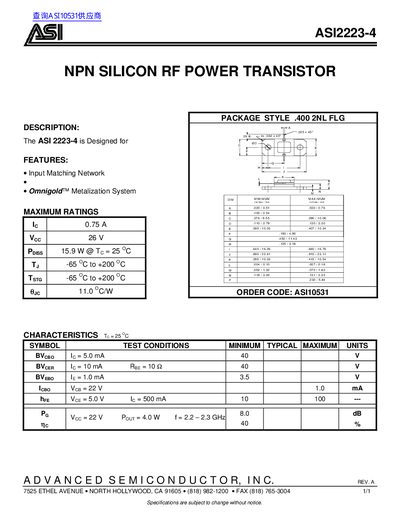

The ASI 2223-4 is an NPN Silicon RF Power Transistor designed with input matching network and Omnigold™ metalization system.
The ASI ASI2223-4 is an NPN silicon RF power transistor designed with an input matching network and an Omnigold™ Metalization System. It is packaged in a .400 2NL FLG style package.
Key specifications include a maximum collector current (Ic) of 0.75 A, a breakdown voltage (Vceo) of 26 V, and a power dissipation rating of 15.9 W at 25°C. The device operates within a temperature range of -65 °C to +200 °C.
| Collector Current (Ic) | 0.75 A |
|---|
The maximum continuous collector current (Ic) is rated at 0.75 A.
The device can dissipate a maximum of 15.9 W when the case temperature is 25°C.
The specified power gain characteristics are valid for a frequency range of 22-23 GHz.
