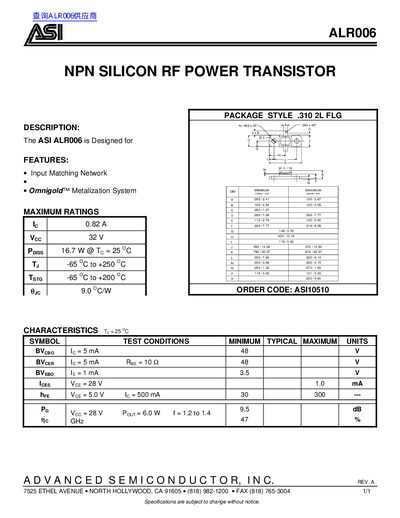

ALR006 is a NPN silicon RF power transistor from ASI.
The ASI ALR006 is an NPN silicon RF power transistor designed for applications requiring high efficiency and performance. It features an Omnigoid™ Metalization System and is packaged in a 310 2L FLG style.
| Collector Current (Ic) | 0.82 A |
|---|---|
| Cut-off Current (Ices) | 1.0 mA |
| Power Gain (Po) | 8.5 dB |
| Frequency (f) | 47 GHz |
The ASI ALR006 is an NPN silicon RF power transistor.
The device has a maximum Vce of 32 V and a maximum Po of 16.7 W at Tc = 25°C.
The transistor can be stored between -65 °C and +200 °C.
