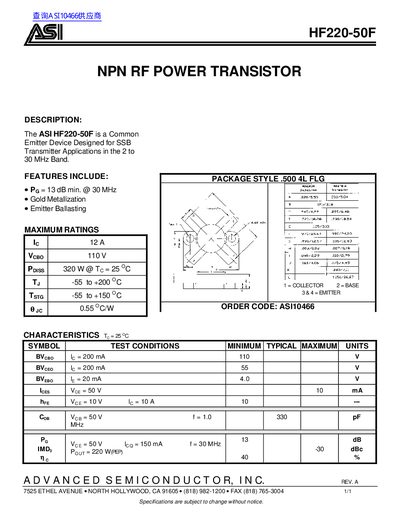

The document describes the features and characteristics of the ASI HF220-50F NPN RF power transistor, which is designed for SSB transmitter applications in the 2 to 30 MHz band.
The ASI HF220-50F is an NPN RF power transistor designed for common emitter applications in SSB transmitters operating within the 2 to 30 MHz frequency band. Key features include a .500 4L FLG package style, gold metallization, and emitter ballasting for improved performance.
| Operating Frequency | 2 to 30 MHz |
|---|
It is designed for SSB transmitter applications in the 2 to 30 MHz band.
It is a Common Emitter Device Designed for SSB Transmitter Applications in the 2 to 30 MHz Band.
The maximum power dissipation is 320 W @ Tc = 25 °C.
