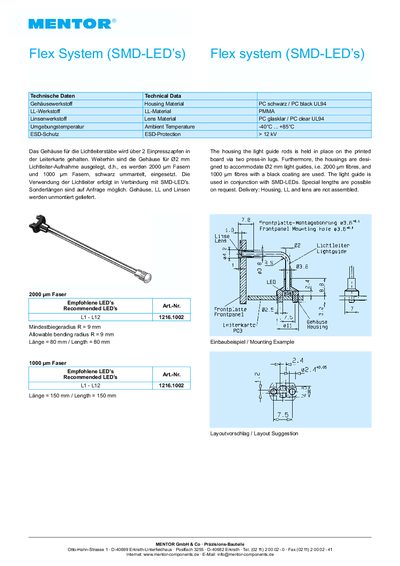

Mentor SMD-LED Light Guide Rod Technical Data Sheet

Introduces the technical characteristics of the product

Brand: Mentor
Document type: Product Leaflet
Language: English
Pages: 1
File format: PDF
File size: 77 KB
Published: 08 June, 2012
Updated: 30 September, 2023
MD5 checksum: C7D052509169EC803210F3F5ABEF8829
PDF: Mentor SMD-LED Light Guide Rod Technical Data Sheet PDF

About this manual

This document provides technical specifications for Mentor light guide rods designed to be used in conjunction with SMD-LEDs. The housings are made of PC (Polycarbonate) or PMMA and feature a black coating on the fibers.

The product is supplied unmounted, consisting of separate housing, lens, and light guide rod components. It supports fiber diameters of 2000 µm and 1000 µm with an allowable bending radius of at least 9 mm.

What's inside

Housing Material
Lens Material
Ambient Temperature
ESD Protection
Fiber Diameter
Recommended LEDs
Bending Radius
Dimensions
Mounting Example

Specifications

Housing Material	PC schwarz / PC glasklar (UL94) or PMMA
Lens Material	LL-Werkstoff
Ambient Temperature Range	-40°C ... +85°C
Allowable Bending Radius	R = 9 mm
Fiber Diameters Supported	2000 µm and 1000 µm (black coated)
Delivery Condition	Housing, LL and lens are not assembled

Frequently asked questions

What is the minimum allowable bending radius for the light guide rods?

The minimum allowable bending radius is R = 9 mm.

Are the components supplied assembled?

No, the housing, lens, and light guide rods are delivered unmounted.
