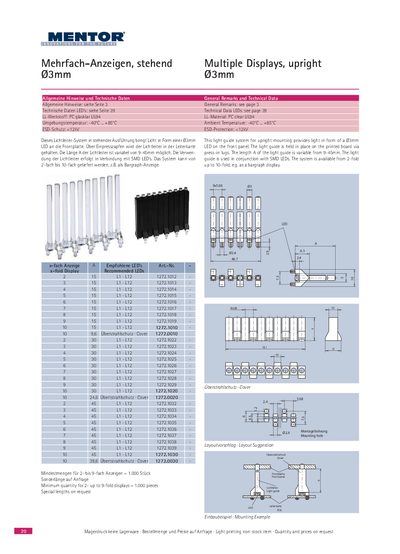

The document describes a product with a light guide system that brings light to the front panel in the form of a 3mm LED. The product comes with different cover materials and quantities for various applications.
This light‑guide system is designed for upright mounting and delivers light from a 3 mm LED to the front panel. The guide is secured to the printed circuit board with press‑in lugs, and its length (A) can be adjusted between 9 mm and 45 mm. It is compatible with SMD LEDs and is offered in configurations ranging from 2‑fold to 10‑fold, including bar‑graph versions.
Technical data include the material (PC clear UL94), operating temperature range, ESD protection level, and recommended LED part numbers. Minimum order quantities start at 1 000 pieces for 2‑ to 9‑fold displays, with special lengths available on request. The sheet also provides mounting hole dimensions and layout suggestions for integration. This manual is written in German.
| LED size | 3 mm |
|---|---|
| Light‑guide length (A) | 9 mm – 45 mm (adjustable) |
| Ambient temperature range | -40 °C … +85 °C |
| ESD protection | < 12 kV |
| Minimum order quantity (2‑ to 9‑fold) | 1 000 pieces |
The system operates from –40 °C up to +85 °C.
The light guide length can be set between 9 mm and 45 mm.
The minimum order quantity is 1 000 pieces.
