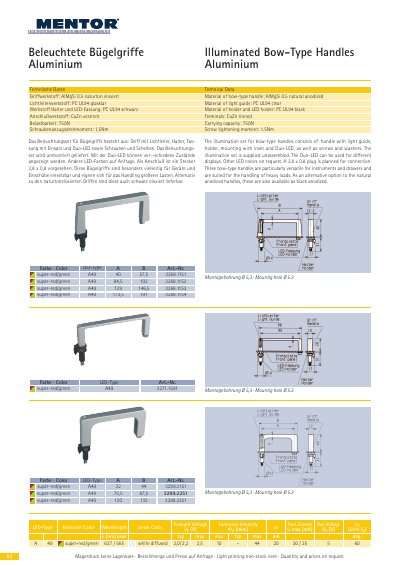

The document describes an aluminum illuminated bow-type handle called A49 super-red/green, with a Duo-LED light capable of displaying different states. It is suitable for handling larger loads in devices and slots.
The illuminated bow‑type handles are made from an AlMgSi 0.5 aluminum alloy that is natural anodized. A clear PC UL94 light guide and a black PC UL94 holder contain a Duo‑LED that can display red/green states. The terminals are tinned CuZn and the handles can carry up to 750 N of load.
The illumination set is supplied unassembled and includes the handle, light guide, holder, mounting hardware, Duo‑LED, screws and washers. A 2.8 × 0.8 mm plug is used for connection. Handles are available in natural anodized or black anodized finishes, and other LED colors can be requested. This manual is written in German.
| Handle material | AlMgSi 0.5 natural anodized |
|---|---|
| Light guide material | PC UL94 clear |
| Holder material | PC UL94 black |
| Terminal material | CuZn tinned |
| Carrying capacity | 750 N |
| Screw tightening torque | 1.5 Nm |
| Mounting hole diameter | Ø 5.3 mm |
| Connector size | 2.8 × 0.8 mm plug |
The handles can carry up to 750 N of load.
A screw tightening torque of 1.5 Nm is specified.
A 2.8 × 0.8 mm plug is used for the connection.
Yes, other LED colors can be provided on request.
