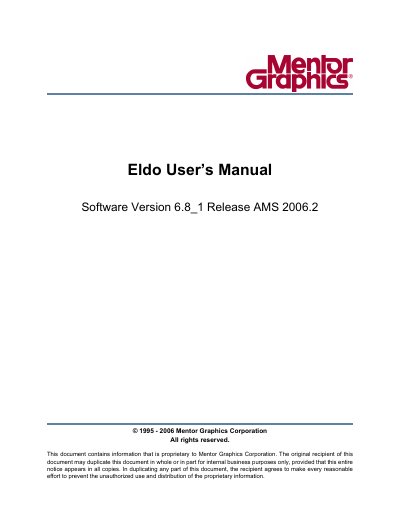

Mentor Graphics Eldo 6.8_1 User Manual

About this manual

This manual describes the Eldo circuit simulation software version 6.8_1 (AMS 2006.2). It covers the software’s purpose, file formats, and basic concepts, followed by detailed instructions for getting started, running simulations, and using the Eldo control language.

The document also includes extensive reference material on device models, source definitions, analog and digital macromodels, magnetic and switched‑capacitor models, as well as a complete list of simulator commands and options for advanced users.

What's inside

• Introduction to Eldo
• Getting Started
• Running Eldo
• Eldo Control Language
• Device Models
• Sources
• Analog Macromodels
• Digital Macromodels
• Simulator Commands

Specifications

Frequently asked questions

What version of Eldo does this manual cover?

It covers Eldo version 6.8_1.

Where can I find help for command‑line options?

Command‑line help is described in Chapter 2 under “Command Line Help”.

How do I run Eldo from the command line?

See the “Running Eldo from the Command Line” section in Chapter 2.
