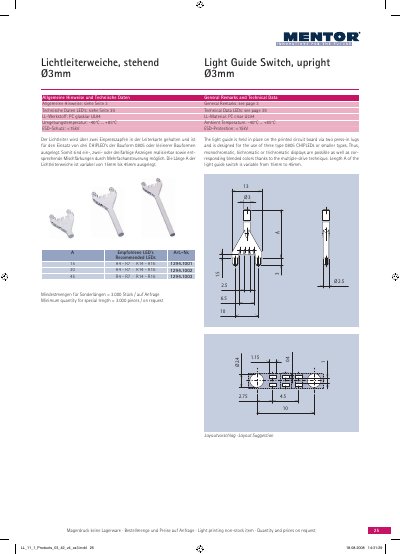

1294.1001 Light Guide Switch, upright Ø3mm is a light guide device for displaying information. It can be controlled by three CHIPLEDs (part number 0805) and supports monochrome, bicolor and trichromatic display. Its length can be adjusted from 15mm to 45mm.
The document provides general remarks and technical data for the upright light guide switch (Lichtleiterweiche) with a Ø3 mm cross‑section. It describes the construction material, ambient temperature range, ESD protection level, and the variable length of the light guide.
Installation notes explain that the light guide is mounted on a PCB using two press‑in lugs and is compatible with three 0805‑size chip LEDs or smaller, allowing monochrome, bichrome or trichrome displays. Ordering information, recommended LEDs and layout suggestions are also included. This manual is written in German.
| Ambient Temperature | -40 °C … +85 °C |
|---|---|
| ESD Protection | <15 kV |
| LED Compatibility | Three 0805 chip LEDs or smaller |
The device operates from –40 °C up to +85 °C.
Special lengths require a minimum order of 3 000 pieces.
It is designed for three 0805 chip LEDs or any smaller LED package.
