The document is about 1216.1005, 1216.1003, mainly introduces the characteristics of the product, such as product material, use temperature range.

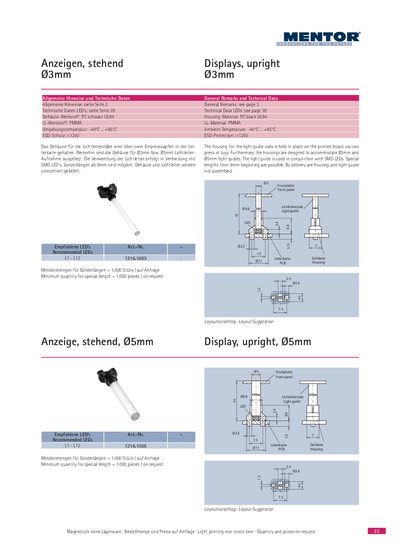

The Mentor 1768 1767 23 is an upright display module that uses a PC black UL94 housing and a PMMA light‑guide rod. It operates in ambient temperatures from –40 °C to +85 °C and provides ESD protection of less than 12 kV. The housing is designed for 3 mm and 5 mm light‑guide rods and is supplied unassembled.
Ordering information specifies a minimum quantity of 1 000 pieces for special‑length light guides. Recommended LEDs are listed with part numbers (e.g., 82.5 and 75) and layout suggestions are provided for integration on the printed circuit board. This manual is written in German.
| Housing Material | PC black UL94 |
|---|---|
| Light Guide Material | PMMA |
| Ambient Temperature Range | -40 °C … +85 °C |
| ESD Protection | <12 kV |
| Supported Light Guide Sizes | 3 mm and 5 mm |
| Minimum Order Quantity for Special Lengths | 1 000 pieces |
The display can operate from –40 °C up to +85 °C.
It provides ESD protection of less than 12 kV.
A minimum of 1 000 pieces is required for special lengths.
