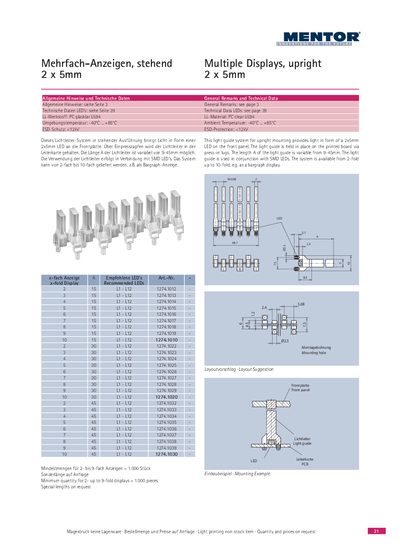

This document describes a multi-LED fiber optic display system called L1-L12, which provides light sources in a 2x5mm format on the front panel. It features high temperature resistance and ESD protection.
The Mentor light guide system is designed for upright mounting and delivers light through a 2×5 mm LED on the front panel. The light guide is secured to the PCB with press‑in lugs and its length (A) can be adjusted from 9 mm to 45 mm. It is compatible with SMD LEDs and can be supplied in configurations ranging from 2‑fold to 10‑fold, for example as a bar‑graph display.
Technical data include a clear PC material (UL94), an operating temperature range of –40 °C to +85 °C, and ESD protection below 12 kV. Minimum order quantities start at 1 000 pieces for 2‑ to 9‑fold displays, with special lengths available on request. This manual is written in German.
| Ambient Temperature | -40 °C … +85 °C |
|---|---|
| ESD Protection | <12 kV |
| LED Size | 2 × 5 mm |
| Light Guide Length (A) | 9 mm … 45 mm (adjustable) |
| Display Options | 2‑fold to 10‑fold |
| Minimum Order Quantity | 1 000 pieces (2‑ to 9‑fold) |
It operates from –40 °C to +85 °C.
The system provides ESD protection of less than 12 kV.
The display uses 2 × 5 mm LEDs.
Length A can be set between 9 mm and 45 mm.
