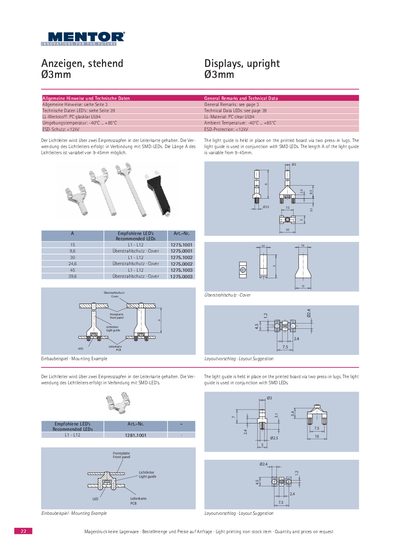

This document is an instruction manual for a light guide. It can be used with SMD-LEDs and the length is adjustable. There are multiple models available.
The document provides general remarks and technical data for Mentor's Ø3mm upright display light guide. It describes how the light guide is held in place on the printed board using two press‑in lugs and can be used together with SMD LEDs.
A mounting example layout is shown, and ordering information notes that the item is non‑stock and available on request. The light guide length (A) is adjustable between 9 mm and 45 mm. This manual is written in German.
| Length range (A) | 9 mm – 45 mm |
|---|
The length A of the light guide is variable from 9 mm to 45 mm.
The light guide is held in place on the printed board via two press‑in lugs.
