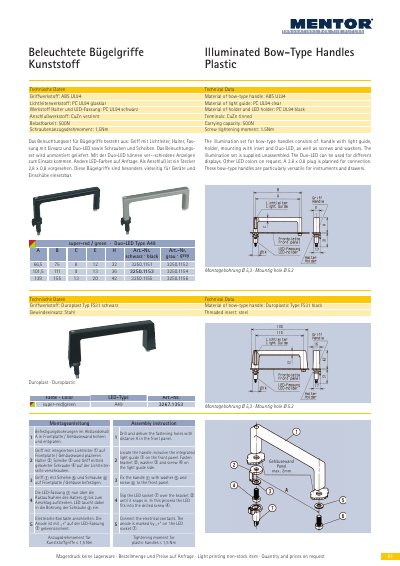

The document introduces an illuminated plastic bow-type handle called A49 super-red/green. The handle is made of ABS UL94 material, the light guide is made of PC UL94, and the Duo-LED can be used for different displays. This product is suitable for various devices and drawers.
The illuminated bow‑type handle (model A49) consists of a plastic handle with an integrated light guide, a holder, a Duo‑LED module, and the necessary screws and washers. It is supplied unassembled and can be fitted to instruments, drawers or other equipment. Different LED colors are available on request and the unit uses a 2.8 × 0.8 mm plug for connection.
Installation involves drilling mounting holes (Ø 5.3 mm), fixing the holder and washer, inserting the LED socket, and tightening the screws to a torque of ≤1.5 Nm. The handle material is ABS UL94, the light guide is clear PC UL94, and the holder and LED holder are black PC UL94. The terminals are CuZn tinned, and the assembly can support a load of up to 500 N. This manual is written in German.
| Handle material | ABS UL94 |
|---|---|
| Light guide material | PC UL94 clear |
| Holder material | PC UL94 black |
| Terminal material | CuZn tinned |
| Carrying capacity | 500 N |
| Screw tightening torque | ≤1.5 Nm |
| Mounting hole diameter | Ø 5.3 mm |
| LED type | Duo‑LED super‑red/green |
| Connector size | 2.8 × 0.8 mm |
The handle can support a load of up to 500 N.
Screws should be tightened to a torque of 1.5 Nm or less.
The handle is made of ABS UL94 and the light guide is made of clear PC UL94.
A 2.8 × 0.8 mm plug is provided for connection.
