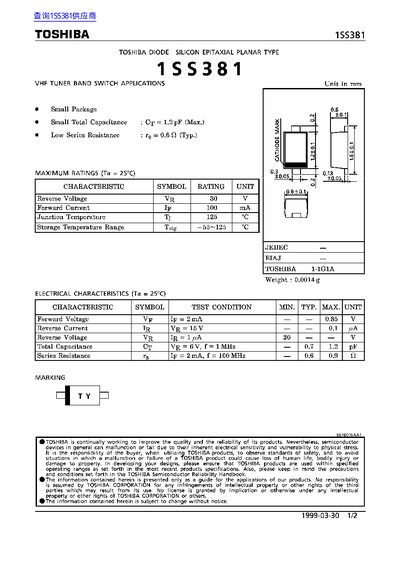

This document is a technical datasheet for the Toshiba 1SS381, a silicon epitaxial planar type diode designed specifically for VHF tuner band switch applications. The device features a small package with low series resistance and minimal total capacitance.
The datasheet provides maximum ratings including a reverse voltage of 30V and a forward current of 100mA. It also details electrical characteristics such as forward voltage, reverse current, total capacitance, and series resistance under specific test conditions.
| Reverse Voltage | 30 V |
|---|---|
| Forward Current | 100 mA |
| Junction Temperature | 125 °C |
| Storage Temperature Range | -55~125 °C |
| Total Capacitance (Max) | 1.2 pF |
| Series Resistance (Typ) | 0.60 Ω |
It is designed for VHF tuner band switch applications.
The maximum reverse voltage is 30V and the maximum forward current is 100mA.
