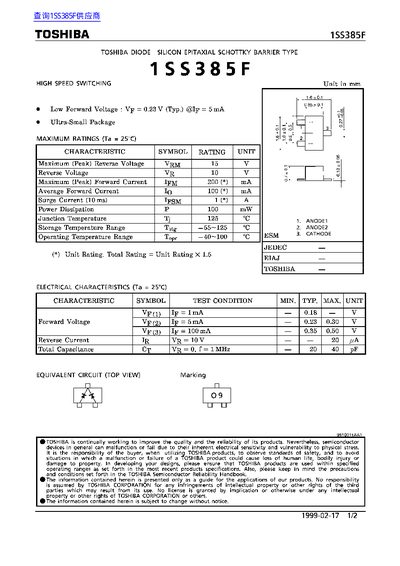

This document is a datasheet for the TOSHIBA 1SS385F, a high-speed switching unit diode featuring an ultra-small package. It highlights key attributes such as low forward voltage (typical 0.23V) and provides maximum ratings including a peak reverse voltage of 15V and a surge current of 1A.
| Maximum (Peak) Reverse Voltage | 15 V |
|---|---|
| Reverse Voltage | 10 V |
| Maximum (Peak) Forward Current | 200 mA |
| Average Forward Current | 100 mA |
| Surge Current (10 ms) | 1 A |
| Power Dissipation | 100 mW |
| Junction Temperature | 125 °C |
| Operating Temperature Range | -40~100 °C |
The typical forward voltage (VF) at an IF of 5mA is 0.23V.
The maximum reverse current (IR) at VR = 10V is 20 pA.
The total capacitance (CT) at Vr = 0, f= 1MHz ranges from 20 to 40 pF.
