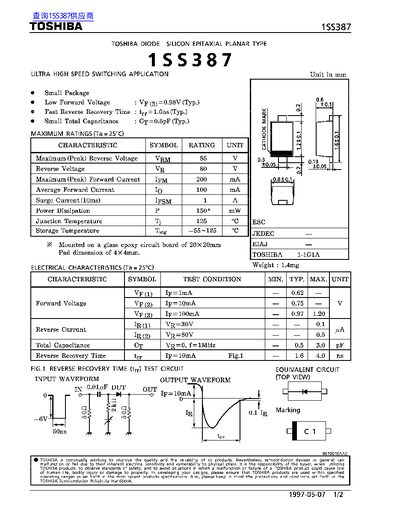

This document is a datasheet for the Toshiba 1SS387, an ultra high speed switching silicon epitaxial planar type diode. It highlights key features including small package size, low forward voltage of 0.98V typical, fast reverse recovery time of 1.6ns typical, and small total capacitance of 0.5pF typical.
| Forward Voltage (Typical) | 0.98V |
|---|---|
| Reverse Recovery Time (Typical) | 1.6ns |
| Total Capacitance (Typical) | 0.5pF |
| Maximum Peak Reverse Voltage | 85 V |
| Average Forward Current | 100 mA |
| Surge Current (10ms) | 1 A |
The typical forward voltage is 0.98V.
The maximum peak reverse voltage is 85 V.
The typical reverse recovery time is 1.6ns.
