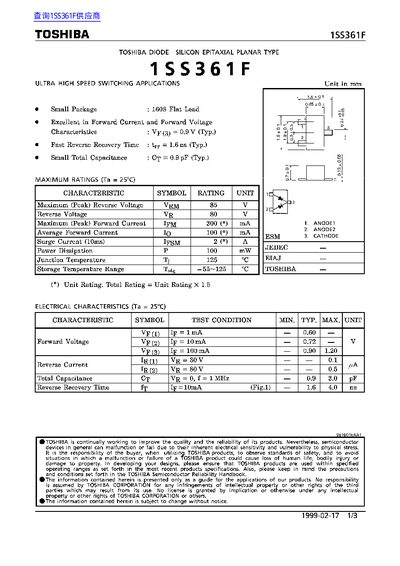

This datasheet provides electrical characteristics and maximum ratings for the Toshiba 1SS361F silicon epitaxial planar diode. It includes forward voltage, reverse recovery time, and capacitance specifications. The document also contains test circuit diagrams and graphs illustrating performance under various conditions. Toshiba advises users to operate the device within specified ranges to ensure safety and reliability.
| Maximum Reverse Voltage | 85 V |
|---|---|
| Average Forward Current | 100 mA |
| Forward Voltage (100mA) | 0.90 V |
| Reverse Recovery Time | 1.6 ns |
| Total Capacitance | 0.9 pF |
The maximum reverse voltage rating is 85 V.
The forward voltage at 100mA is 0.90 V.
The reverse recovery time is 1.6 ns.
