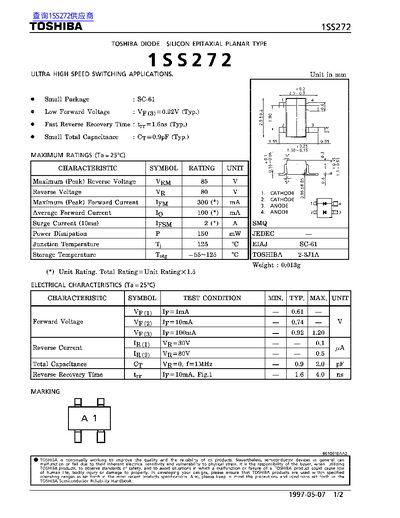

This datasheet provides electrical specifications for the Toshiba 188272 silicon epitaxial planar diode, including maximum ratings and typical characteristics. It is designed for ultra-high-speed switching applications. The document includes graphs illustrating forward voltage, reverse voltage, reverse recovery time, and capacitance under specified test conditions. Safety and usage guidelines are also included, emphasizing proper operating ranges and precautions for semiconductor reliability.
| Maximum Reverse Voltage | 85 V |
|---|
The maximum reverse voltage rating is 85 V.
The typical forward voltage is 0.92 V.
The typical reverse recovery time is 1.6 ns.
The maximum average forward current is 100 mA.
