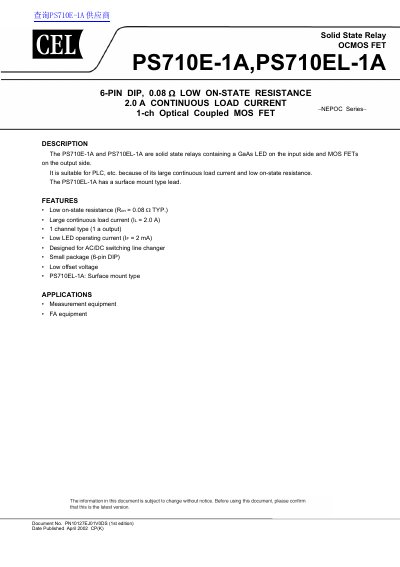

PS710E-1A,PS710EL-1A are NEC's 6-PIN DIP, 0.08 Ω LOW ON-STATE RESISTANCE 2.0 A CONTINUOUS LOAD CURRENT 1-ch Optical Coupled MOS FET Solid State Relay OCMOS FET, with low on-state resistance, large continuous load current, 1-channel, low LED operating current, AC/DC switching line changer design, small package, low offset voltage and other features.
The document describes the NEPOC Series PS710E-1A and PS710EL-1A as 6-pin DIP solid state relays containing a GaAs LED input side and MOS FET output side. These devices are designed for AC/DC switching line changers and are suitable for use in PLCs due to their large continuous load current of 2.0 A and low on-state resistance of 0.08 Ω typical.
| On-state Resistance (Typical) | 0.08 Ω |
|---|---|
| Continuous Load Current | 2.0 A |
| LED Operating Current | 2 mA |
| Package Type | 6-pin DIP |
| Operating Ambient Temperature | -40 to +85 °C |
The typical on-state resistance (Ron) is 0.08 Ω.
Yes, the PS710EL-1A has a surface mount type lead.
They are suitable for measurement equipment and FA (Factory Automation) equipment.
