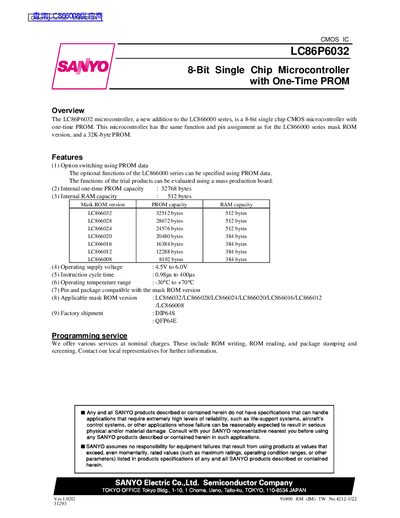

The LC86P6032 is a new member of the LC866000 series, an 8-bit single chip CMOS microcontroller with one-time PROM. This microcontroller has the same function and pin assignment as for the LC866000 series mask ROM version, and a 32K-byte PROM.
The LC86P6032 is part of the LC866000 series and features a 32K-byte internal one-time PROM capacity alongside 512 bytes of RAM. It offers option switching via PROM data to configure input/output ports, allowing users to specify functions such as pull-up resistors and output modes.
| Internal PROM capacity | 32768 bytes |
|---|---|
| Internal RAM capacity | 512 bytes |
| Operating supply voltage | 4.5V to 6.0V |
| Instruction cycle time | 0.98us to 400us |
| Operating temperature range | -30°C to +70°C |
Recommended programmers include Advantest R4945, Andou AF-9704, AVAL PKW-1100, and Minato electronics MODEL 1890A.
The device operates with a supply voltage between 4.5V and 6.0V.
The microcontroller contains an internal one-time PROM of 32768 bytes.
The unit can operate at temperatures up to +70°C.
