1SV250 is a PIN diode produced by SANYO. It is mainly used in VHF, UHF and AGC applications. It has the characteristics of small package, low reverse voltage, low reverse current and low series resistance.

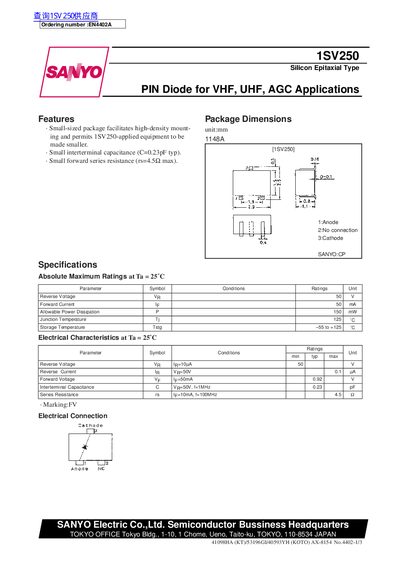

This document is a technical datasheet for the SANYO 1SV250, a silicon epitaxial type PIN diode designed for VHF, UHF, and AGC applications. The device features a small-sized package with low interterminal capacitance (typical 0.23pF) and low forward series resistance.
| Forward Current | 50 mA |
|---|---|
| Allowable Power Dissipation | 150 mW |
| Junction Temperature | 125 C |
| Storage Temperature | -55 to +125 C |
| Interterminal Capacitance | 0.23 pF |
| Series Resistance | 4.5 Ohms max |
The device can handle a maximum forward current of 50 mA.
The allowable power dissipation is rated at 150 mW when the ambient temperature is 25°C.
The typical interterminal capacitance for this diode is 0.23 pF.
